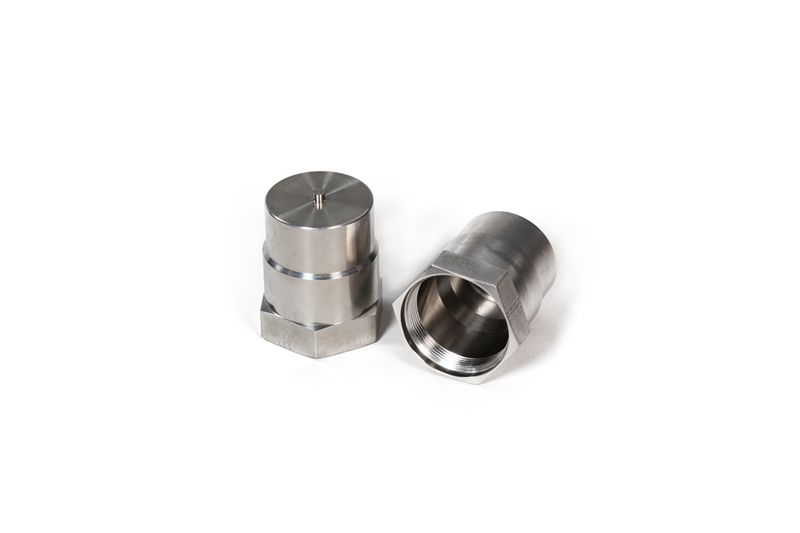

Pressure Caps for Male Quick Disconnect

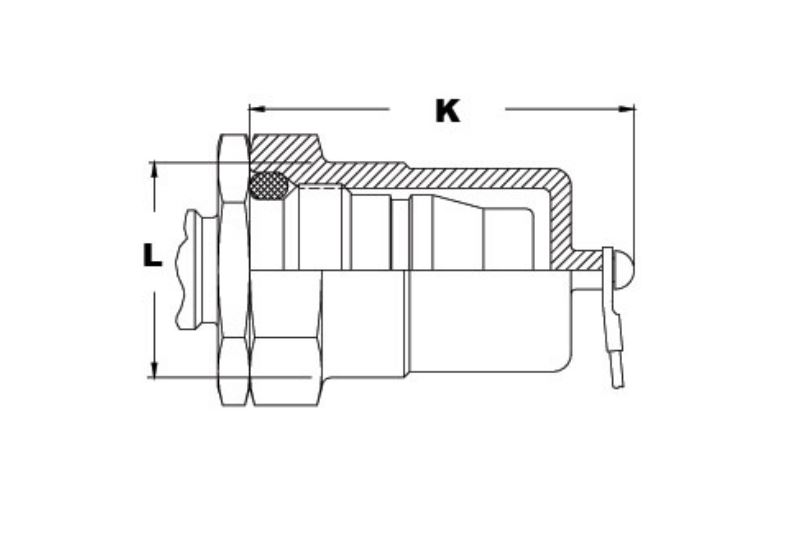

Pressure Caps for Male Quick Disconnect Cad

Pressure Caps for Male Quick Disconnect


Pressure cap acts as a secondary or redundant seal in case the poppet valve seal fails or starts to leak. This option works for high pressure fluid or gas applications or situations where secondary containment is required.

Product Variants

Item # Size Dimension K Dimension L
DCQ 2300-4 4 1.75 in 0.745 in
DCQ 2300-8 8 2.25 in 1.50 in
DCQ 2300-12 12 2.65 in 2.00 in
DCQ 2300-16 16 3.48 in 2.56 in
